Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-ZZ-PHC-2000
Document:
Video

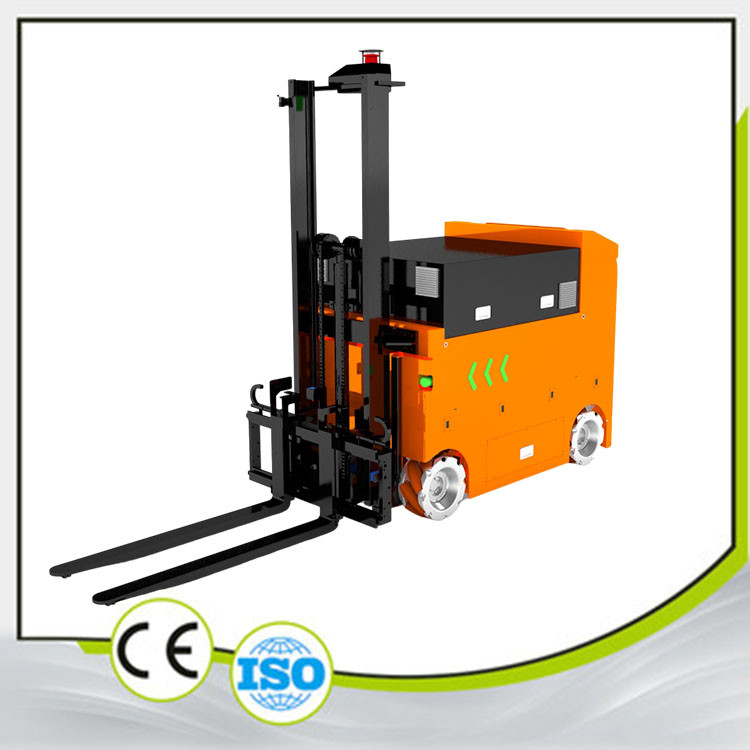

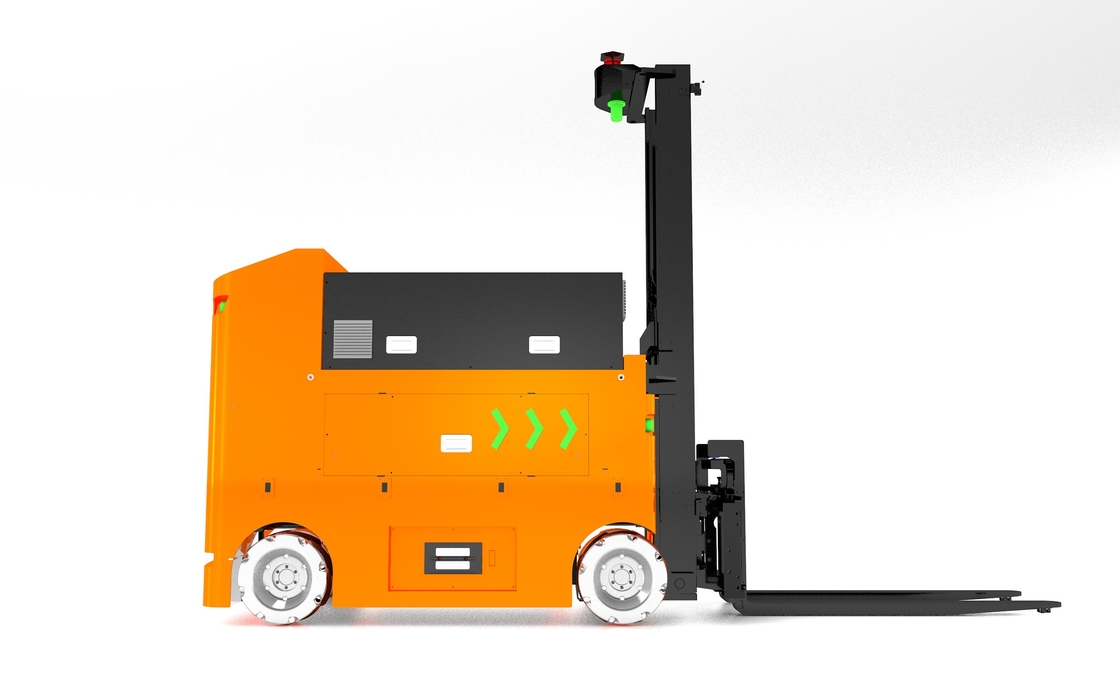

Intelligent Unmanned Forklift lift capacity 2T, fork lift height 1.7m, four-wheel drive, omnidirectional movement
| Item | Technical Parameters |
|---|---|
| Product Name | Omnidirectional Unattended Forklift |
| Product Size | L3500 x W1100 x H2433 mm (customizable) |
| Load Mode | Front pick-up, lifting height 1700 mm |
| Rated Load | 1500 KG - 2000 KG |
| Control Mode | PLC, microcontroller (customizable) |
| Guiding Mode | Laser, QR code, magnetic strip (as required) |
| Travel Direction | Forward, backward, left turn, right turn, bifurcation, 360° rotation, translation, lateral, omnidirectional |
| Drive Mode | McNamara wheel drive |
| Drive Power | DC 48V |
| Travel Speed | Straight: 0-40 m/min, Turning: 0-20 m/min |
| Repeat Positioning Accuracy | ±5 mm |
| Permissible Road Flatness | ≤5 mm |
| Working Mode | Continuous operation for 24 hours |
| Climbing Ability | ≤5% |
| Charging Mode | Online charging (side charging) |
| Obstacle Sensor Safety Sensing Range | Detection distance: ≤3 m (adjustable), Sensor detection angle: ≤270° (adjustable), Emergency braking distance: < 20 mm |
| Safety Protection | Front obstacle detection sensor, double protection with safety touch-edge anti-collision mechanism, emergency stop switch |
| Alarm Form | Sound and light alarm |
| Work Noise | Below 70 dB (A) |
| Battery | Type: Lithium iron phosphate, Voltage: 48V, Capacity: 210Ah |
| Design Life | >10 years |
