Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3C,CE
Model Number:
TY-ZZJS-1-10
Document:
Video
Video
Video
Video

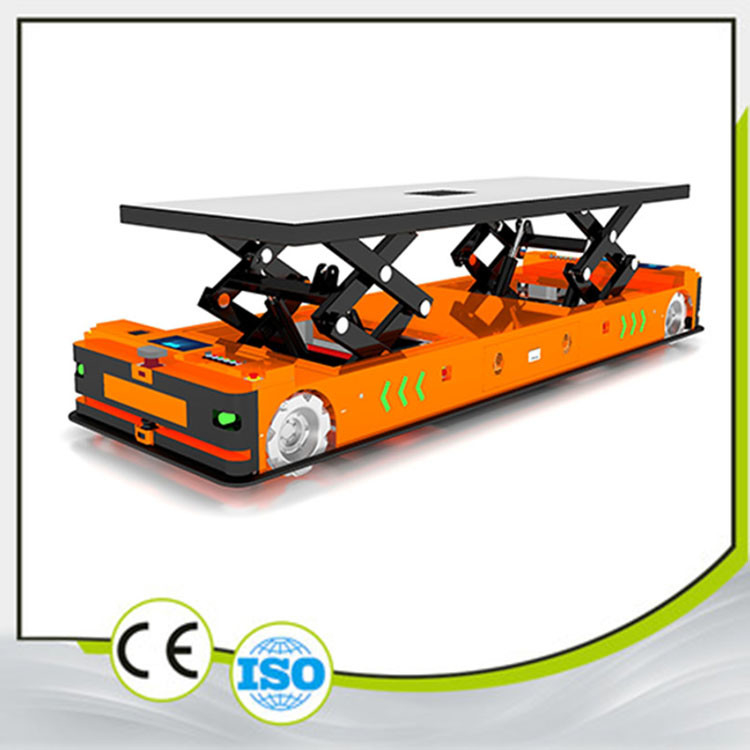

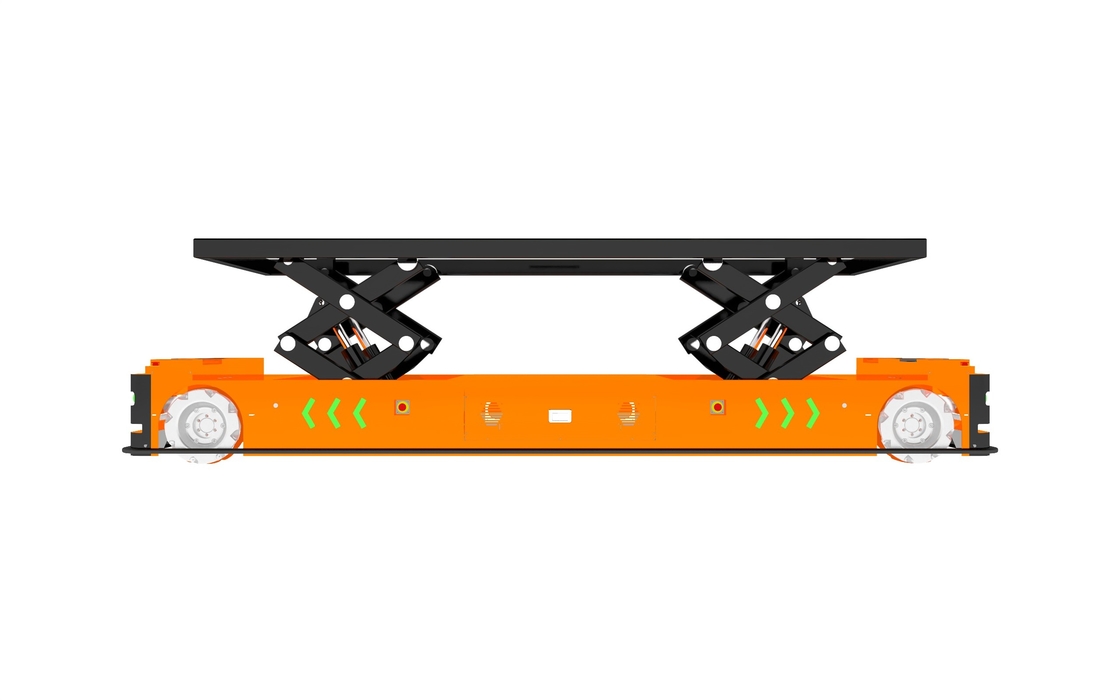

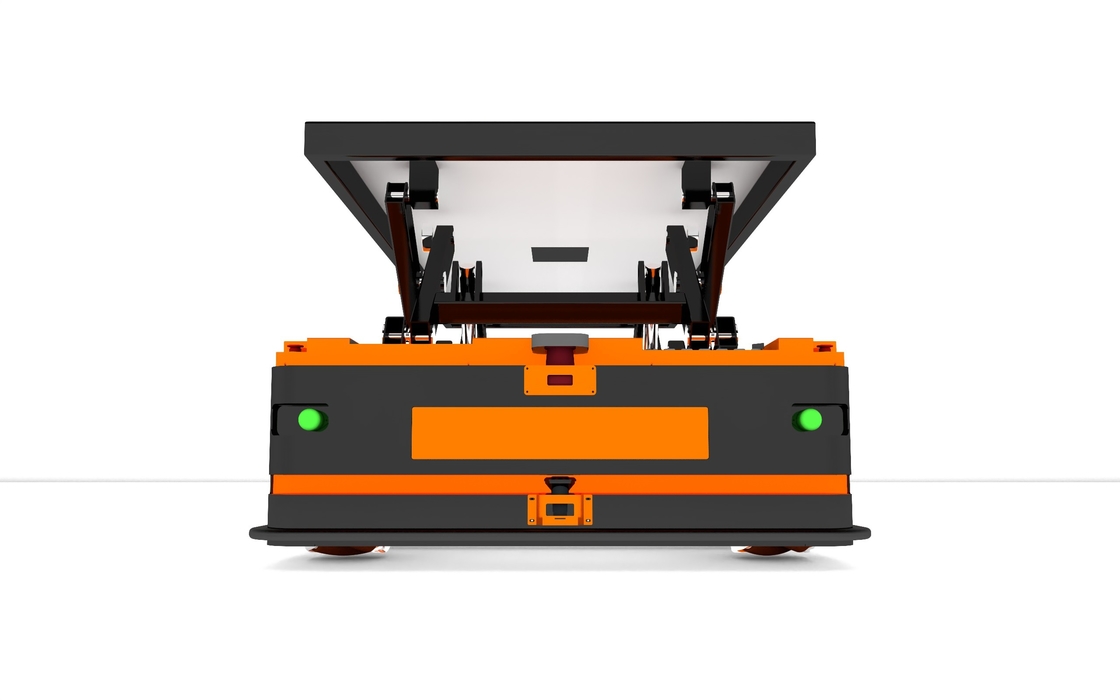

AGV Automated Guided VehicleHeavy-duty omnidirectional AGV, lifting weight 10,000KG, highly customized, four-wheel drive
Project: Technical Parameters
| Parameter | Details |
|---|---|
| Product Name | Overload Lifting Platform Omni-directional AGV |
| Product Size | Length × Width × Height (Customized according to customer requirements) |
| Loading Mode | Electric hydraulic overload lifting platform, lifting stroke 800mm, customizable |
| Load Capacity | 1000KG-10000KG (Customizable according to requirements) |
| Control Mode | PLC, microcontroller (Customizable according to requirements) |
| Guidance Mode | Laser, QR code, magnetic stripe (Customizable according to requirements) |
| Travel Directions | Forward, backward, left turn, right turn, bifurcation, 360° rotation, lateral movement, transverse movement, omnidirectional |
| Drive Mode | Mecanum wheel drive |
| Drive Power | 2000W*4 (Customizable according to requirements) |
| Drive Power Supply | DC 48V |
| Travel Speed | Straight: 0-40 m/min, Turning: 0-20 m/min |
| Repeat Positioning Accuracy | ±5mm |
| Allowed Road Surface Flatness | ≤5 mm |
| Operating Mode | Continuous operation 24 hours |
| Climbing Ability | ≤5% |
| Charging Mode | Online charging (side charging) |
| Obstacle Sensor Safety Range | Detection distance: ≤3 m (adjustable), sensor detection angle: ≤270° (adjustable), emergency braking distance: < 20 mm |
| Safety Protection | Front obstacle detection sensor, dual protection safety touch bumper mechanism, emergency stop switch |
| Alarm Form | Audible and visual alarm, tricolor light, horn |
| Working Noise | Less than 70 dB (A) |
| Battery | Type: LiFePO4 battery, Voltage: 48V, Capacity: 200Ah |
| Design Life | Over 10 years |
