Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-FB-HZ-2
Document:
Video
Video
Video
Video

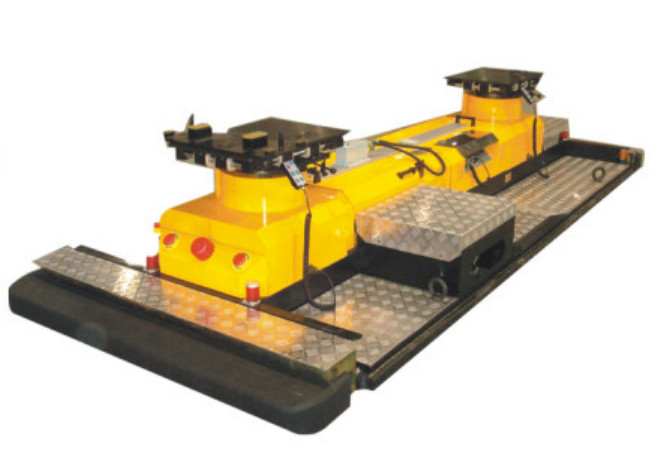

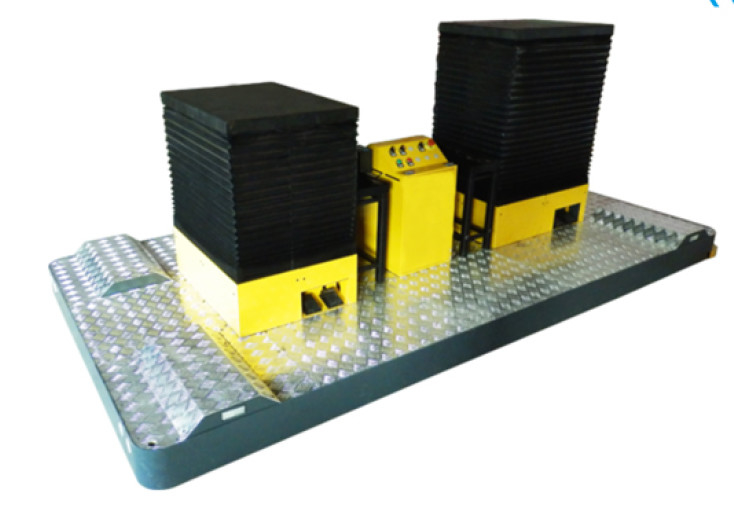

AGV Automated Guided Vehicle Combined double-lift backpack AGV, with docking adjustment XY slide, load 2T
| Project | Technical Parameters |
|---|---|
| Product Name | Dual-Lift Combined AGV |
| Product Dimensions | L x W x H mm (Customizable based on client requirements) |
| Loading Mode | Dual-lift platform, X±120mm, Y±50mm, Rotation ±2° |
| Load Capacity | 2000 kilograms (Customizable according to requirements) |
| Control Mode | PLC, Single-chip Microcomputer (Customizable according to requirements) |
| Guidance Mode | Laser, QR Code, Magnetic Stripe (Customizable according to requirements) |
| Travel Directions | Forward, Backward, Left Turn, Right Turn, Fork, 360° Rotation, Translation, Lateral Movement, Omni-directional |
| Drive Mode | Dual-Steering Wheel Drive |
| Power Supply | DC 48V |
| Travel Speed | Linear: 0-40 meters/minute, Turning: 0-20 meters/minute |
| Repeat Positioning Accuracy | ±5 millimeters |
| Allowed Road Smoothness | ≤5 millimeters |
| Operating Mode | Continuous operation for 24 hours |
| Climbing Ability | ≤5% |
| Charging Mode | Online Charging (Side Charging) |
| Obstacle Sensor Safety Sensing Range | Detection Distance: ≤3 meters (Adjustable), Sensor Detection Angle: ≤270° (Adjustable), Emergency Braking Distance: < 20 millimeters |
| Safety Protection | Front Obstacle Detection Sensor, Dual Protection Safety Bumper Mechanism, Emergency Stop Switch |
| Alarm Form | Sound and Light Alarm, Three-color Light, Music Horn |
| Operating Noise | Below 70 decibels (A) |
| Battery | Type: Lithium Iron Phosphate Battery, Voltage: 48V, Capacity: 210Ah |
| Design Life | Over 10 years |
