Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-ZZGT-5000
Document:
Video
Video
Video
Video

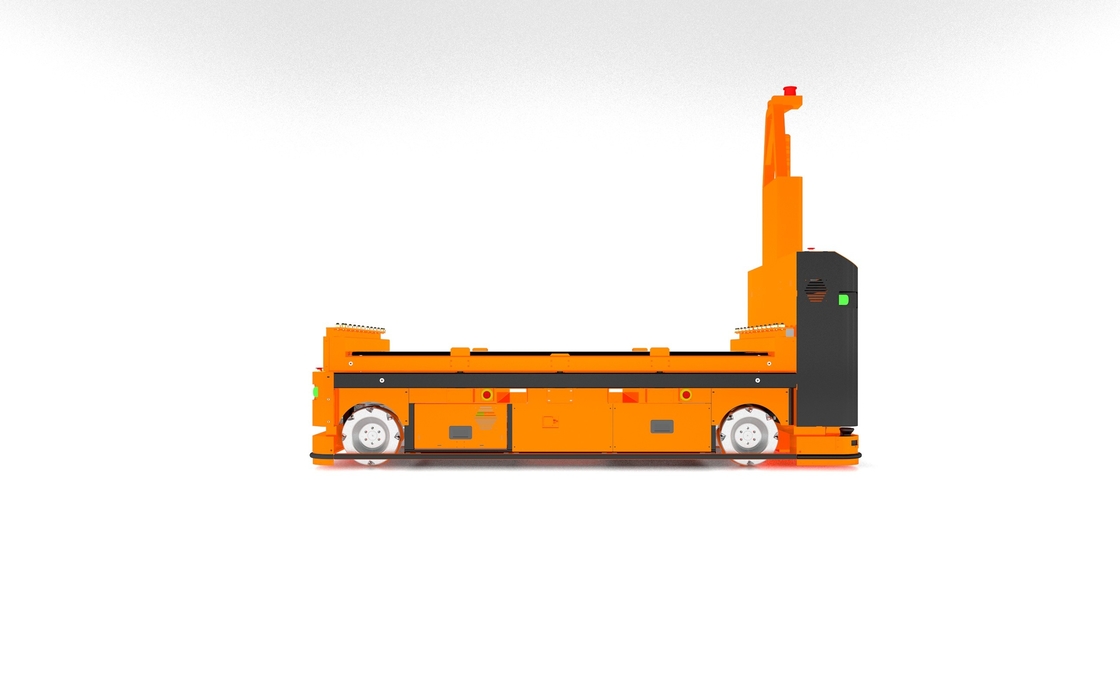

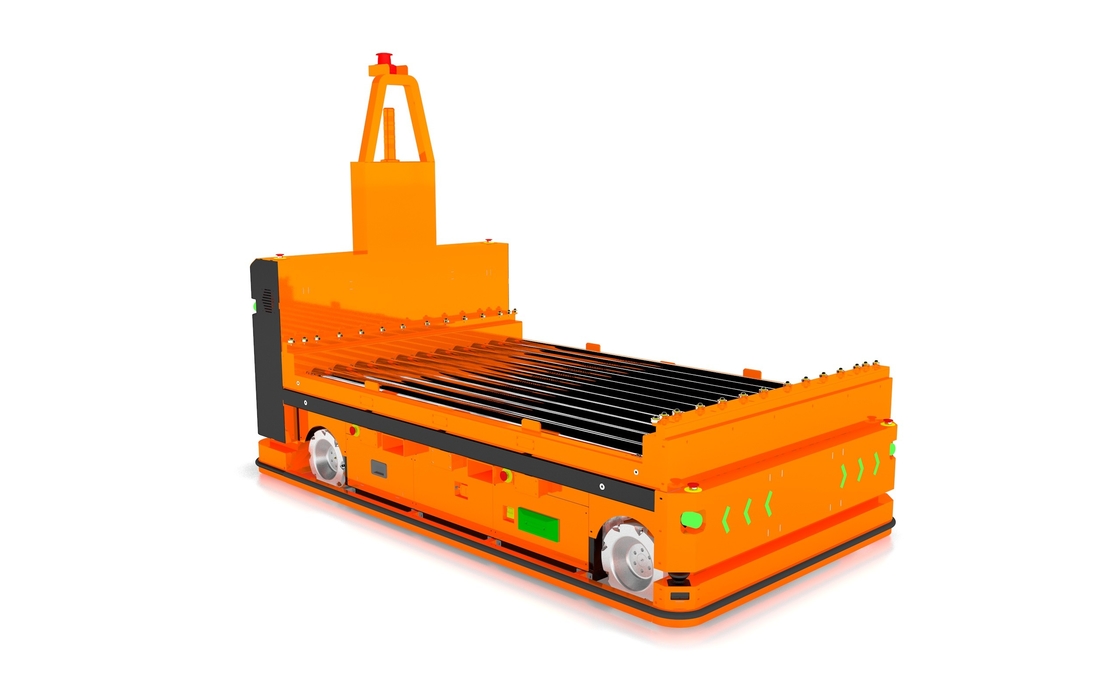

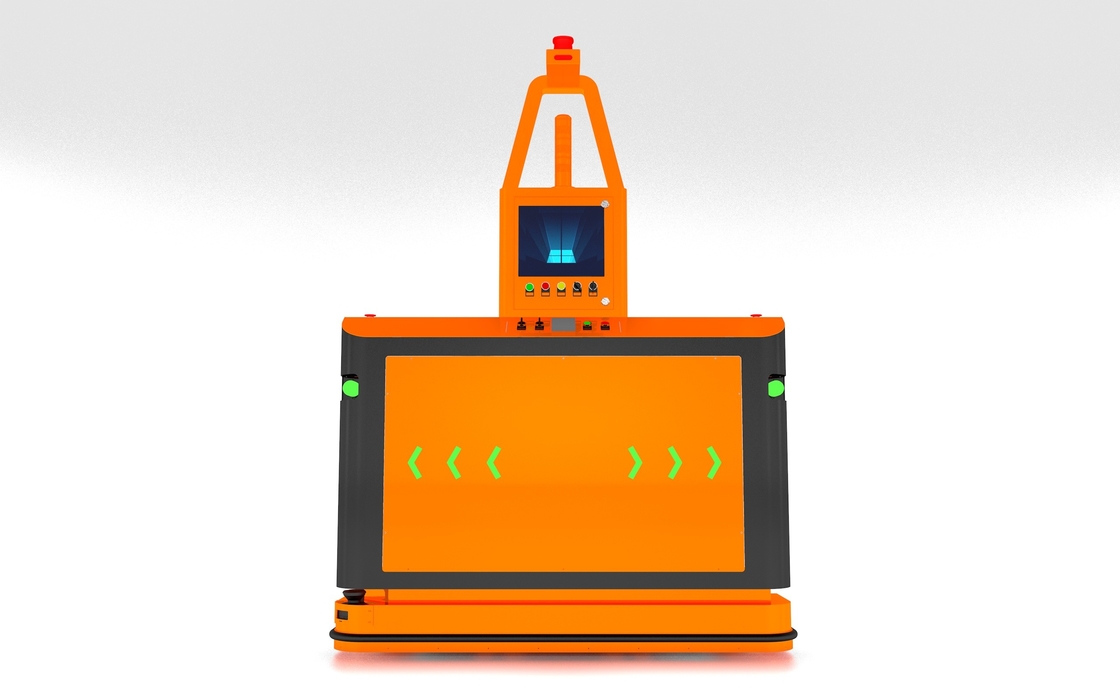

AGV automatic guided vehicle's heavy-duty two-way power rollers are accurately docked and driven by Mecanum. 1T-5T load
| Parameter | Details |
|---|---|
| Product Name | Overload Bidirectional Roller Precise Docking AGV |
| Product Size | Length × Width × Height in millimeters (Customizable according to customer requirements) |
| Loading Mode | Portable roller |
| Load Capacity | 1000 kg - 5000 kg (Customizable according to requirements) |
| Control Mode | PLC, microcontroller (Customizable according to requirements) |
| Guidance Mode | Laser, QR code, magnetic stripe (Customizable according to requirements) |
| Travel Directions | Forward, backward, left turn, right turn, bifurcation, 360° rotation, lateral movement, transverse movement, omnidirectional |
| Drive Mode | Mecanum wheel drive (Customizable according to requirements) |
| Drive Power Supply | DC 48V |
| Travel Speed | Straight: 0-40 meters/minute, Turning: 0-20 meters/minute |
| Repeat Positioning Accuracy | ±5 millimeters |
| Allowed Floor Flatness | ≤5 millimeters |
| Operating Mode | Continuous operation 24 hours |
| Climbing Ability | ≤5% |
| Charging Mode | Online charging (side charging) |
| Obstacle Sensor Safety Detection Range | Detection distance: ≤3 meters (adjustable), sensor detection angle: ≤270° (adjustable), emergency braking distance: < 20 millimeters |
| Safety Protection | Front obstacle detection sensor, dual safety touch bumper mechanism, emergency stop switch |
| Alarm Mode | Audible and visual alarm, tricolor light, music horn |
| Working Noise | Less than 70 decibels (A) |
| Battery | Type: LiFePO4 battery, Voltage: 48V, Capacity: 120Ah |
| Design Life | Over 10 years |
